CRC Blue Layout Fluid

Discontinued

Discontinued product number may still be available for a limited time through your local supplier or retailer.

Be the first to review this product
Part No.
03066
Item# 1003329

Features and Benefits

  • Allows you to scribe sharp precise lines
  • Prevents glare with a uniform deep color
  • Non-flaking
  • Non-peeling
  • Dries evenly

Applications

  • For Use By Tool and Die Makers
  • Machinists
  • Pattern Makers
  • Maintenance Mechanics

Product Description

A dark blue fluid leaves a smooth even coat for all layout work. The non-flaking, non-peeling fluid dries very quickly, sticks to both metal and glass and allows you to scribe sharp precise lines.

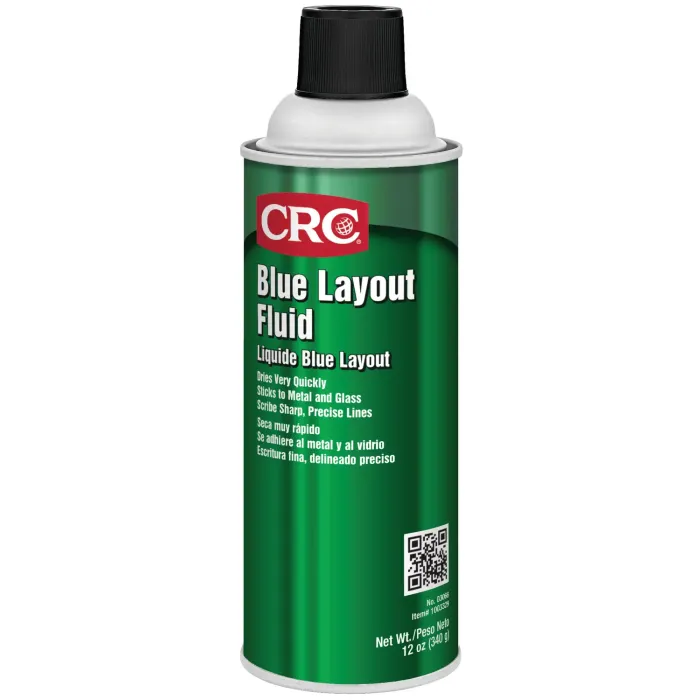

main product photo

Reviews

Resources

12 wt oz
Part # 1003329
Item # 03066
Case # 1003328
Container 16 Ounce Aerosol
Units Per Case 12
Status Discontinued
Product Data Sheet
RoHS
Safety Data Sheet
Safety Data Sheet (Spanish)

Specifications

12 wt oz
Evaporation Rate Fast
Flammability Class - CPSC Extremely Flammable
Flash point (C) -29°C
Flash point (F) -20.2°F
Net Fill 12 Wt Oz
Plastic Safe No
Appearance Blue Liquid
Brand CRC
Case# 1003328
Cases Per Pallet 133
Color None
DOT Proper Shipping Name Aerosols, Flammable, Limited Quantity
Dry Time Fully Dry Fast
Generic Description Blue Layout Fluid
I 2 of 5 Code 30078254030662
Product Lifecycle Status DISC
Item Number 03066
Propellant Hydrocarbon
Specific Gravity 0.75
Unit Dimensions 7.75H x 2.63W x 2.63D in
Unit Package Description 16 Ounce Aerosol
Units per Case 12
UPC Code 078254030661
VOC Category Not Regulated
VOC g/L (Consumer Product def) 332
VOC g/L (Federal) 624.9
VOC lbs/gal (Consumer Prod def) 2.75
VOC Lbs./Gal. (Federal) 5.2
VOC % (Consumer Product def) 43.73
VOC % (Federal) 40.3
