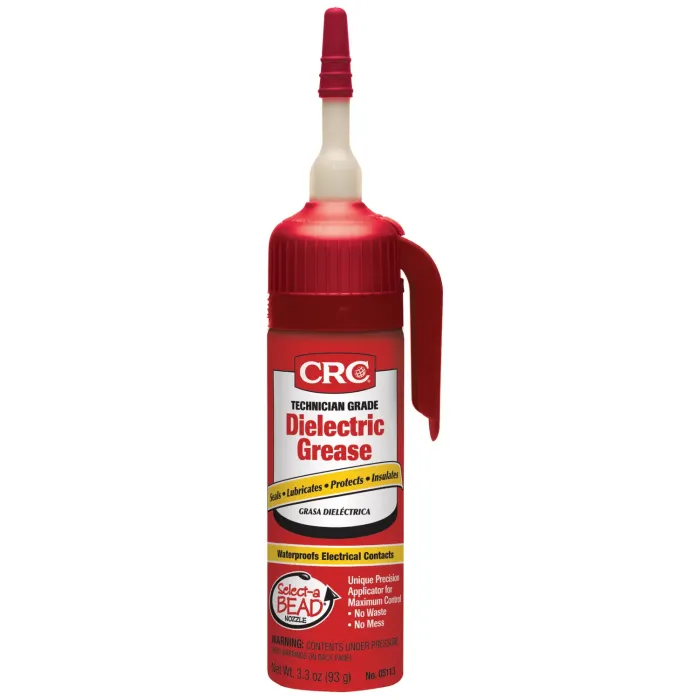

CRC Technician Grade Dielectric Grease
Discontinued
Discontinued product number may still be available for a limited time through your local supplier or retailer.
Variations & Resources
|
0.5 wt oz |
3.3 wt oz |
| Part # |
1003727 |
1003734 |
| Item # |
05109 |
05113 |
| Case # |
1003726 |
1003735 |
| Container |
0.5 Ounce Tube |
6 Ounce Pressurized Can |
| Units Per Case |
12 |
12 |
| Status |
Active |
Active |
| Product Data Sheet |
|
|
| Safety Data Sheet |
|
|
| Safety Data Sheet (Spanish) |
|
|
| Sales Sheet |
|
|
| RoHS |
N/A |
|
Specifications
|
0.5 wt oz |
3.3 wt oz |
| Dielectric Strength |
500 Volts/Mil |
>450 Volts/Mil |
| Evaporation Rate |
Slow |
N/A |
| Film Type |
Grease |
Non-Curing Silicone Paste |
| Flammability Class - CPSC |
None |
None |
| Flash point (C) |
299°C |
>300°C |
| Flash point (F) |
570°F |
>572°F |
| Net Fill |
0.5 Wt Oz |
3.3 Wt Oz |
| Plastic Safe |
Yes |
Safe on Most Plastics (Test small area) |
| Appearance |
Translucent White |
Opaque White Gel |
| Brand |
CRC |
CRC |
| Case# |
1003726 |
1003735 |
| Cases Per Pallet |
370 |
120 |
| DOT Proper Shipping Name |
Not Regulated |
Aerosols, Non-Flammable, Limited Quantity |
| Generic Description |
Dielectric Grease |
Dielectric Grease |
| I 2 of 5 Code |
N/A |
60078254051132 |
| Product Lifecycle Status |
ACTIVE |
ACTIVE |
| Item Number |
05109 |
05113 |
| Propellant |
None |
Nitrogen |
| Removal (How To) |
Remove with a degreaser. |
Remove with petroleum distillates and chlorinated solvents. |
| Unit Dimensions |
7.88H x 2.75W x 1D in |
8.75H x 2.25W x 2.25D in |
| Unit Package Description |
0.5 Ounce Tube |
6 Ounce Pressurized Can |
| Units per Case |
12 |
12 |
| UPC Code |
078254051093 |
N/A |
| VOC Category |
Not Regulated |
Not Regulated |
| VOC g/L (Consumer Product def) |
0 |
<0.01 |
| VOC g/L (Federal) |
N/A |
<15.5 |
| VOC lbs/gal (Consumer Prod def) |
0 |
<0.1 |
| VOC Lbs./Gal. (Federal) |
N/A |
<0.13 |
| VOC % (Consumer Product def) |
0 |
<1 |
| VOC % (Federal) |
N/A |
<1 |
| Working Temp (C) |
298.89°C |
-56.7 to 204.4°C |
| Working Temp (F) |
570°F |
-70 to 400°F |
